Visualizations

Learn what each visualization shows and which one to use.

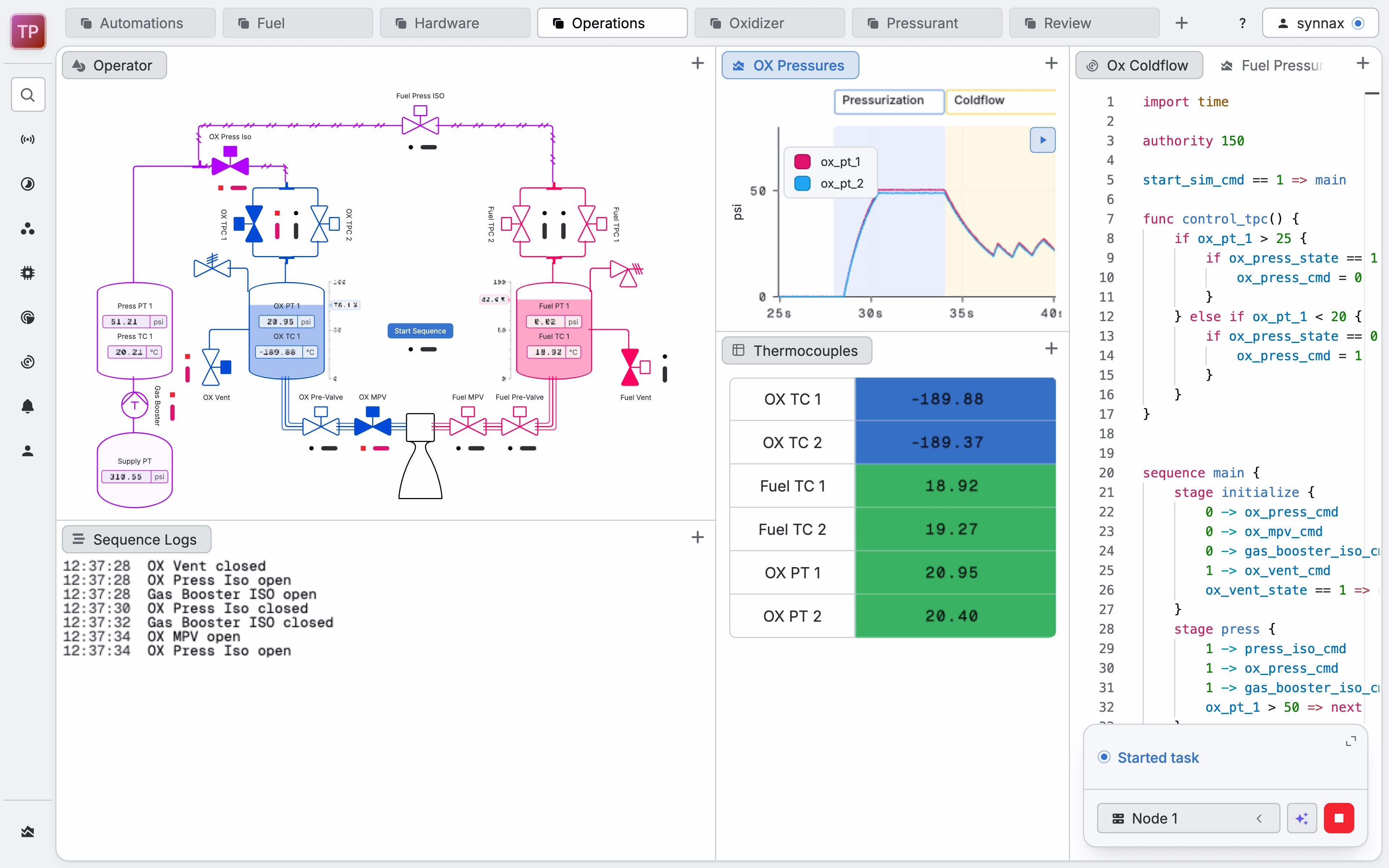

The Synnax Console shows your channel data in four kinds of visualizations: line plots, schematics, tables, and logs. Each visualization opens in a tab. You arrange tabs in panels, and you keep panels in a project.

Synnax stores each project, its panels, and its visualizations in the Synnax Core. The Console saves each change that you make, so everyone on the same Core can share them. A Python or TypeScript script can also create and change them. See visualizations in code.

Engine testproject, 2 panels
Hotfirepanel, 4 tabs
Line plot
Schematic
Table
Log
Cold flowpanel, 2 tabs
Schematic
Line plot
Engine testproject, 2 panels
Hotfirepanel, 4 tabs
Line plot
Schematic
Table
Log
Cold flowpanel, 2 tabs
Schematic
Line plot

What visualizations are for

Watch a test live

A line plot with a live window, such as the last 30 seconds, shows each new sample when it arrives. Put the pressures of one tank on one plot to see how they change together.

Review and compare past tests

Add a range to a line plot to show the data of a past test. Add two ranges to compare two runs on the same plot. Select a region of the plot to mark it as a new range or to download its data as CSV.

Operate your system

A schematic draws your system with symbols for tanks, valves, pumps, and sensors. Each symbol shows the latest value of a channel. Click a valve to open or close it, as manual control shows.

Watch many values at once

A table shows the latest values of many channels in a grid of cells. Add a redline to a cell to color it when its value passes a limit.

Follow messages and states

A log shows the values of its channels as lines of text, and adds each new value when it arrives. Use it for operator notes, sequence states, and other text channels.

Choose a visualization

Visualization Shows Past data Sends commands Use it to
Line plot Values over time, one line for each channel Watch a test live and compare past tests.
Schematic Latest values on a drawing of your system Operate your system.
Table Latest values in a grid of cells Watch many values at once.
Log Values as lines of text, newest last Follow messages and states.

A schematic and a table both show the latest values of many channels. Use a schematic when the position of a value on your system matters, or when you must command hardware. Use a table for a dense grid of values with no drawing.

A line plot and a log both show stored data. Use a log to read each value as text, and scroll back through all of the stored values. Use a line plot to see how numbers change over time.
